OpSalwarKameez24-3: Snake-Pill

Initial Analysis

#

ls -alh fw-backup-4M.bin
-rw-r--r-- 1 user user 4.0M Oct 21  2024 fw-backup-4M.bin

file fw-backup-4M.bin
fw-backup-4M.bin: data

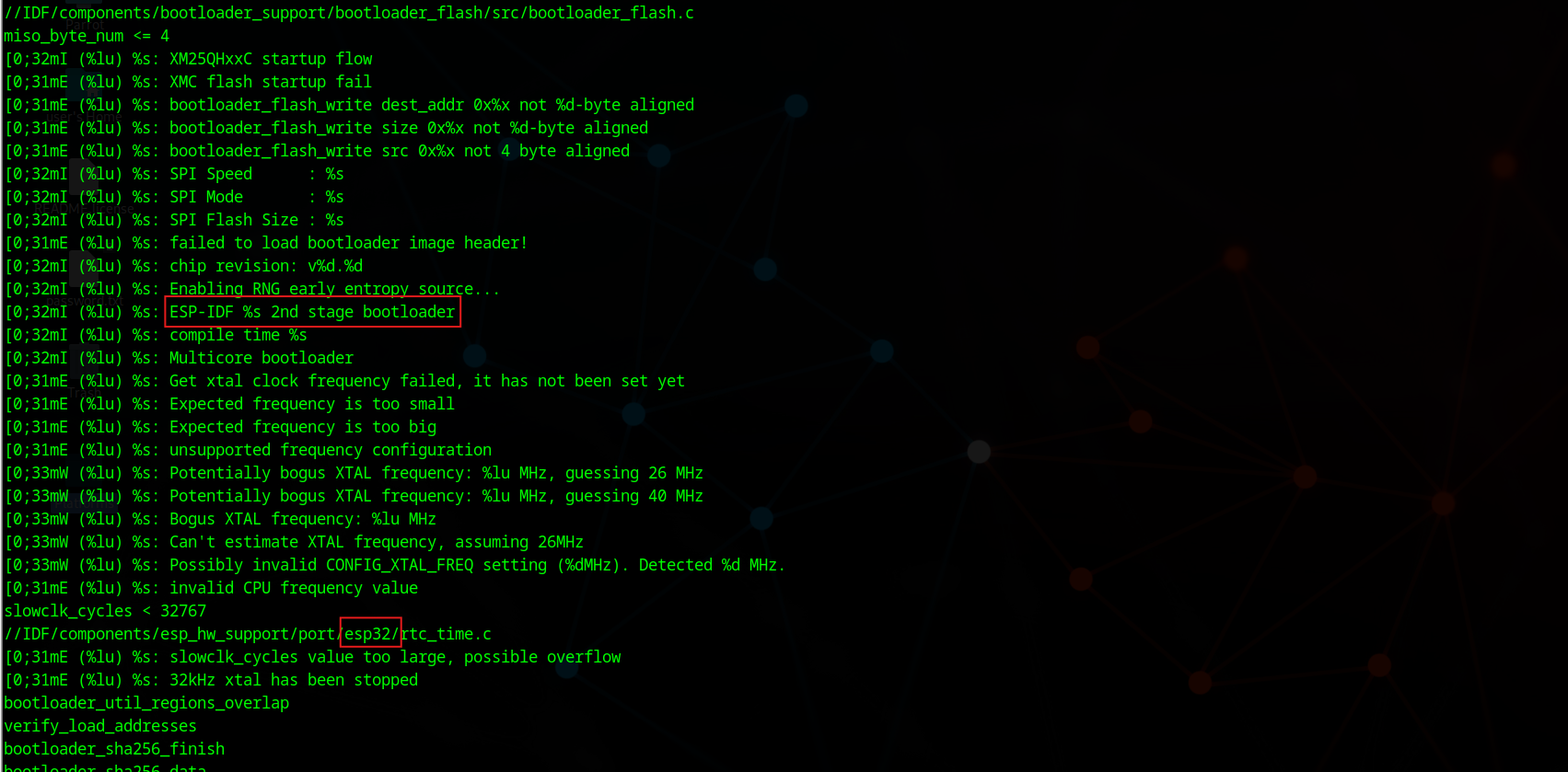

strings -n 15 fw-backup-4M.bin

Firmware Analysis - Brief Summary

#

• Platform Identified: The firmware is built using the ESP-IDF framework for the ESP32 microcontroller, confirmed by log strings referencing ESP-IDF 2nd stage bootloader and code paths (e.g., esp32/rtc_time.c) [attached_image:1] …..
• Functionality: Bootloader logs indicate secure initialization, hardware setup, entropy (random number) configuration, and support for multicore processing.
• Investigation Direction: The device uses ESP32 hardware, and analysis should focus on bootloader routines, hardware checks, entropy setup, and potential network initialization or modification hooks.

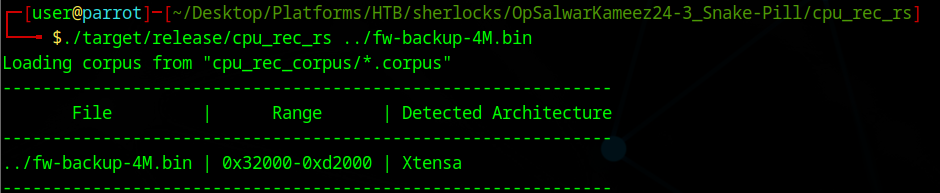

CPU Architecture

#

trou/cpu_rec_rs

Determine which CPU architecture is used in a binary file.

Rust

124

8

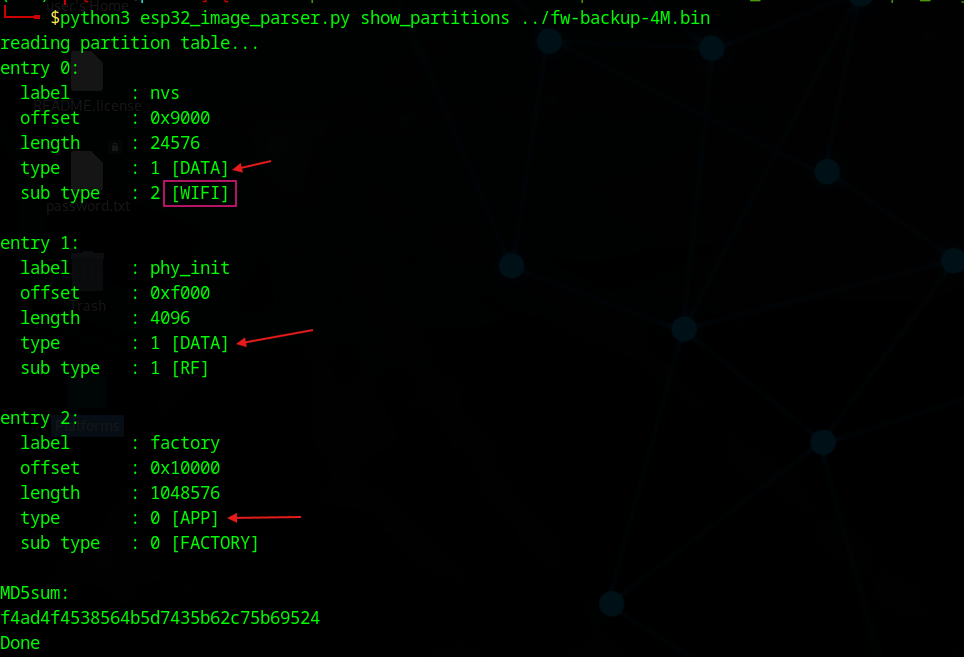

Parsing The firmware

#

A toolkit for helping you reverse engineer ESP32 firmware.

tenable/esp32_image_parser

A toolkit for helping you reverse engineer ESP32 firmware.

Python

221

63

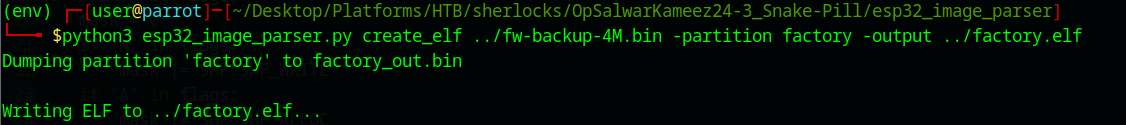

• Extracting the app into elf.
