0. Basic Components

What is a CPU?
#

The Central Processing Unit serves as the computer’s primary processing engine. It executes software programs by following sequences of instructions that define computational tasks, mathematical calculations, and logical decisions. Think of it as the brain that interprets and carries out every operation your computer performs.

Register System
#

High-speed storage cells built directly into the CPU for immediate data access:

General Purpose Registers: Hold data currently being processed
Address Registers: Store memory locations for data retrieval
Status Registers: Track the state of operations and system flags
Instruction Registers: Hold the current instruction being executed

Registers operate at CPU speed, making them thousands of times faster than accessing main memory.

ALU - Arithmetic Logic Unit
#

The computational workhorse of the processor that handles:

Mathematical Operations: Addition, subtraction, multiplication, division
Logical Operations: Boolean logic (AND, OR, NOT, XOR)
Comparison Operations: Determining relationships between values
Bit Manipulation: Shifting and rotating binary data

The ALU receives operands (data to work with) and produces results that feed back into the system for further processing or storage.

Control unit
#

The management system that coordinates all CPU activities:

Instruction Management: Fetches program instructions from memory
Operation Sequencing: Ensures instructions execute in proper order
Resource Coordination: Directs data flow between components
Timing Control: Synchronizes operations with the system clock

CPU Processing Cycle
#

Every instruction follows this fundamental sequence:

Phase 1 - Instruction Fetch
#

Control unit retrieves the next instruction from memory
Instruction address comes from the program counter
Retrieved instruction loads into the instruction register

Phase 2 - Instruction Decode
#

Control unit analyzes the instruction’s operation code (opcode)
Determines what operation to perform
Identifies required operands and their locations

Phase 3 - Instruction Execute
#

ALU performs the specified operation
Results are stored in appropriate registers or memory
System flags are updated based on the operation outcome
Program counter advances to the next instruction

This cycle repeats millions or billions of times per second during program execution.

graph TD
    CPU["`CPU :
    Central Processing Unit`"]

    %% Main Components
    CU["`Control Unit :
    Manages operations`"]
    ALU["`ALU :
    Does calculations`"]
    REG["`Registers :
    Fast storage`"]

    %% External
    MEM["`Memory :
     RAM`"]

    %% Connections
    CPU --> CU
    CPU --> ALU
    CPU --> REG

    CU -.->|Controls| ALU
    CU -.->|Manages| REG
    ALU -.->|Uses data from| REG
    CU <-.->|Fetch instructions| MEM

    %% Styling
    classDef cpu fill:#e3f2fd,stroke:#1976d2,stroke-width:3px
    classDef component fill:#f1f8e9,stroke:#388e3c,stroke-width:2px
    classDef memory fill:#fff3e0,stroke:#f57c00,stroke-width:2px

    class CPU cpu
    class CU,ALU,REG component
    class MEM memory

Memory hierarchy
#

The memory hierarchy represents the organized structure of different storage systems in a computer, arranged by speed, capacity, and cost. Faster memory is more expensive and smaller, while slower memory is cheaper and larger.

graph LR;
reg[Registers] --> cache[Cache] --> ram[RAM] --> storage[Storage]
storage --> ram --> cache --> reg

graph LR
  A["`⚡ High Speed
📦 Low Capacity`"] --> B["`🐢 Low Speed
📦 High Capacity`"]

B --> A

%% Optional styling for clarity
    classDef speed fill:#4caf50,color:#fff,stroke:#333,stroke-width:2px;
    classDef capacity fill:#2196f3,color:#fff,stroke:#333,stroke-width:2px;

    class A speed;
    class B capacity;

RAM
#

RAM (Random Access Memory) serves as the computer’s primary workspace - the main memory where active programs and data reside during execution.

Key Characteristics:

Volatile Memory: Contents disappear when power is lost
Direct Access: CPU can reach any memory location instantly
Working Space: Holds running programs, operating system, and active data
Access Time: 50-100 nanoseconds
Capacity: Typically 8GB-32GB in modern systems

In reverse engineering, RAM contains running malware that can be captured through memory dumps for analysis.

Cache
#

Cache acts as a high-speed buffer between the CPU and RAM, storing copies of frequently accessed data for instant retrieval.

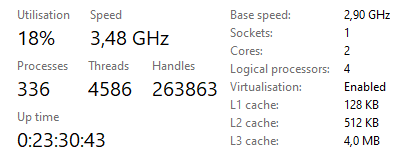

Cache Levels:

L1 Cache: Built into CPU core, 32-64 KB, 1-2 clock cycles
L2 Cache: Close to CPU, 256KB-1MB, 3-10 clock cycles
L3 Cache: Shared among cores, 4-32MB, 10-40 clock cycles

How it works:

Cache Hit: Data found in cache - fast access
Cache Miss: Data not in cache - must fetch from slower memory
Temporal Locality: Recently used data likely to be accessed again
Spatial Locality: Nearby memory locations often accessed together

Storage
#

Storage provides permanent, non-volatile memory that persists data when the computer is powered off.

Types:

HDD (Hard Disk Drive): Magnetic storage, 5-15ms access time, high capacity
SSD (Solid State Drive): Flash memory, 0.1-0.2ms access time, faster but more expensive
NVMe SSD: Direct PCIe connection, 3-7 GB/second transfer rates

Malware often hides in storage through boot sector infections, hidden files, or encrypted payloads.

Clock Frequency
#

The system clock generates electrical pulses that synchronize CPU operations:

Clock Speed: Measured in Hertz (cycles per second)
Modern Speeds: Typically 2-5 GHz (billion cycles per second)
Performance Impact: Higher frequencies allow more instructions per second
Trade-offs: Faster clocks consume more power and generate more heat

Input/Output systems and peripherals
#

The I/O subsystem manages communication between the computer and external devices, enabling user interaction and data exchange with the outside world.

I/O Controllers
#

Specialized circuits that manage communication with peripheral devices:

Function: Translate between CPU signals and device-specific protocols
Buffer Management: Store data temporarily during transfers
Status Monitoring: Track device availability and error conditions
Interrupt Handling: Notify CPU when operations complete

Common Peripherals
#

Input Devices:

Keyboard: Converts keystrokes into digital signals
Mouse: Tracks movement and button clicks
Microphone: Captures audio input for processing
Camera: Digitizes visual information

Output Devices:

Monitor: Displays visual information from the graphics subsystem
Speakers: Convert digital audio signals to sound waves
Printer: Creates physical copies of digital documents

Storage Interfaces:

USB: Universal Serial Bus for connecting various devices
SATA: Serial ATA for connecting internal storage drives
PCIe: High-speed expansion slots for graphics cards and NVMe drives

Malware can exploit I/O systems through malicious USB devices, keyloggers, or network interface vulnerabilities.

Number systems
#

Understanding different number systems is crucial for computer science and reverse engineering, as computers operate using binary while humans prefer decimal representation.

binary
#

The foundation of all digital computing, using only two digits: 0 and 1.

Key Concepts:

Base-2 System: Each position represents a power of 2
Bit: Single binary digit (0 or 1)
Byte: 8 bits grouped together
Word: CPU’s natural data size (32-bit or 64-bit)

Position Values:

128  64  32  16   8   4   2   1
2⁷   2⁶  2⁵  2⁴  2³  2²  2¹  2⁰

Example Conversion:

Binary:  10110101
Decimal: 128 + 32 + 16 + 4 + 1 = 181

Binary Operations:

AND: 1 & 1 = 1, all others = 0
OR: 0 | 0 = 0, all others = 1
XOR: Same bits = 0, different = 1
NOT: Flips all bits (0→1, 1→0)

hexadecimal
#

Base-16 system using digits 0-9 and letters A-F, providing a compact way to represent binary data.

Hexadecimal Digits:

0 1 2 3 4 5 6 7 8 9 A B C D E F
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Conversion Relationships:

4 binary bits = 1 hex digit
2 hex digits = 1 byte
8 hex digits = 32-bit value

Examples:

Binary:     1010 1100 1111 0001
Hex:        A    C    F    1
Result:     0xACF1

Decimal 255 = Binary 11111111 = Hex 0xFF

Common Hex Values:

0xFF: Maximum byte value (255)
0x00: Minimum value (0)
0xDEADBEEF: Common debug value
0x90: NOP instruction in x86 assembly

Memory addresses, opcodes, and data values in reverse engineering are typically displayed in hexadecimal for readability.

decimal
#

The familiar base-10 system humans use daily, with digits 0-9.

Position Values:

1000  100  10   1
10³   10²  10¹  10⁰

Conversion Methods:

Binary to Decimal: Sum powers of 2 for each 1-bit
Hex to Decimal: Sum powers of 16 for each position
Decimal to Binary: Repeatedly divide by 2, collect remainders
Decimal to Hex: Repeatedly divide by 16, collect remainders

Basic networking concepts
#

Network communication enables computers to exchange data across local and global connections, forming the backbone of modern computing infrastructure.

TCP/IP
#

The Transmission Control Protocol/Internet Protocol suite provides the fundamental framework for internet communication.

IP (Internet Protocol):

Function: Routes data packets between network nodes
IPv4: 32-bit addresses (192.168.1.1)
IPv6: 128-bit addresses for expanded address space
Packet Structure: Headers contain source, destination, and routing information

TCP (Transmission Control Protocol):

Reliable Delivery: Guarantees packet arrival and correct order
Connection-Oriented: Establishes sessions before data transfer
Error Correction: Retransmits lost or corrupted packets
Flow Control: Manages transmission speed based on receiver capacity

Three-Way Handshake:

SYN: Client requests connection
SYN-ACK: Server acknowledges and responds
ACK: Client confirms, connection established

graph TD
    A[Client] -->|SYN| B[Server]
    A -->|ACK| B
    B -->|SYN-ACK| A
    B --> C[Connection Established]

ports
#

Logical endpoints that allow multiple network services to operate simultaneously on a single computer.

Port Ranges:

Well-Known Ports (0-1023): Reserved for system services
Registered Ports (1024-49151): Assigned to specific applications
Dynamic Ports (49152-65535): Temporary assignments for client connections

Common Port Numbers:

Port 80: HTTP web traffic
Port 443: HTTPS secure web traffic
Port 22: SSH secure shell
Port 21: FTP file transfer
Port 25: SMTP email sending
Port 53: DNS domain name resolution
Port 3389: RDP remote desktop

Malware often uses uncommon ports or masquerades as legitimate services to evade detection during network analysis.

protocols
#

Standardized rules that govern how data is formatted, transmitted, and received across networks.

Application Layer Protocols:

HTTP/HTTPS: Web browsing and API communication
FTP/SFTP: File transfer services
SMTP/POP3/IMAP: Email communication
DNS: Domain name to IP address translation
DHCP: Automatic IP address assignment

Transport Layer:

TCP: Reliable, connection-oriented communication
UDP: Fast, connectionless communication (no delivery guarantee)

Network Layer:

IP: Routing between different networks
ICMP: Error reporting and network diagnostics (ping, traceroute)

Common Protocol Analysis:

Wireshark: Packet capture and analysis tool
Netstat: Display active network connections
Nmap: Network discovery and port scanning
tcpdump: Command-line packet analyzer

Security Implications:

Packet Sniffing: Intercepting network communications
Man-in-the-Middle: Intercepting and modifying traffic
Port Scanning: Discovering open services for potential exploitation
Protocol Tunneling: Hiding malicious traffic within legitimate protocols

Understanding network protocols is essential for analyzing malware communication, command and control channels, and data exfiltration techniques.
